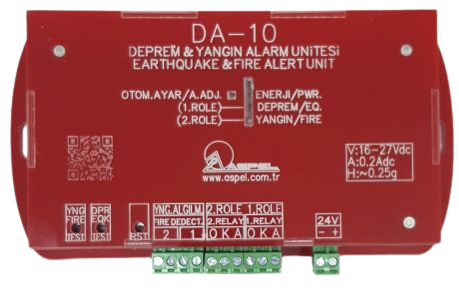

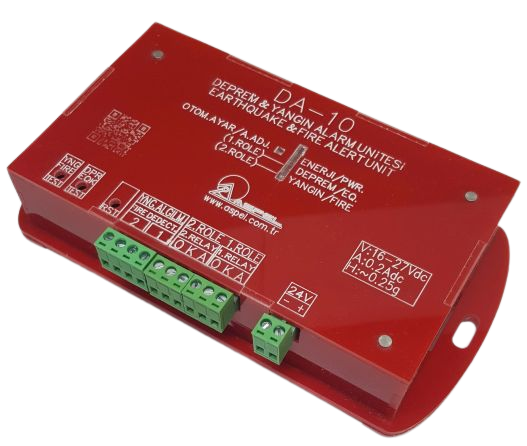

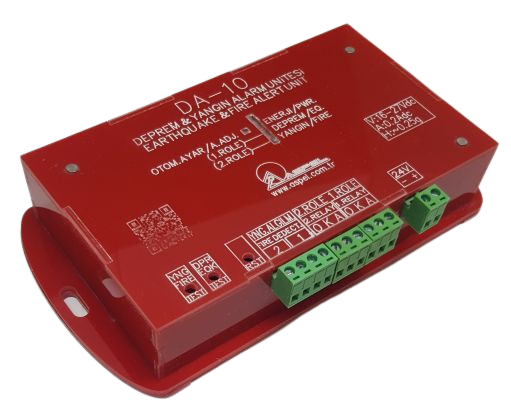

Product code | : | DA-10 |
Supply | : | 16-27Vdc |
Outputs | : | Seismic Activity Relay (NA + NK contact) |
Fire relay (NA + NK contact) | ||
Indicators | : | LED's and buılt-in buzzer |
Sensing | : | 0,25g - 1sn |
Dimensions | : | 200x110+40(mm) |
Protection class | : | IP20 (Indoor) |
Fixing | : | via screw |
Connection | : | Socket connectors |
General Features | ||
![]() |
Auto tune at every power up | |
![]() |
Inputs for external two Fire Sensors | |
![]() |
Internal audible alert | |
![]() |
Relays outputs for fire and earthquake separately | |
![]() |
LEDs for information | |
